How to use mapped IP to allow inbound traffic to reach private address

How to use mapped IP to allow inbound traffic to reach private address

1. Logon juniper SSG.

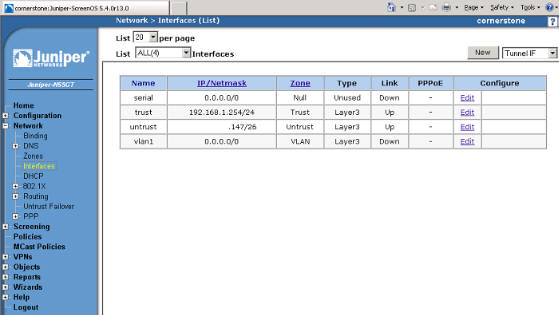

2. Open Interface from Network.

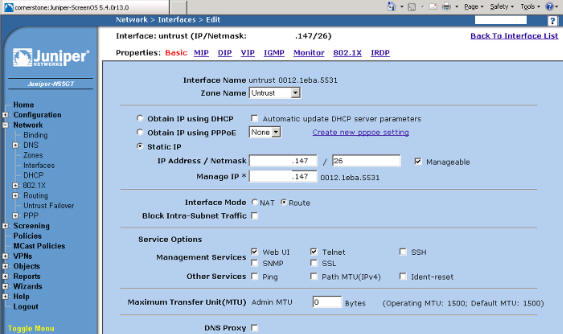

3. Click Edit in untrust/etherent1.

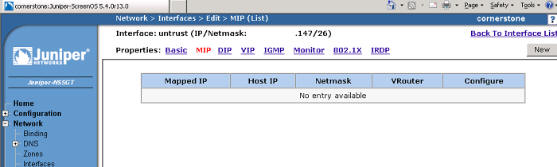

4. Click on MIP and then New.

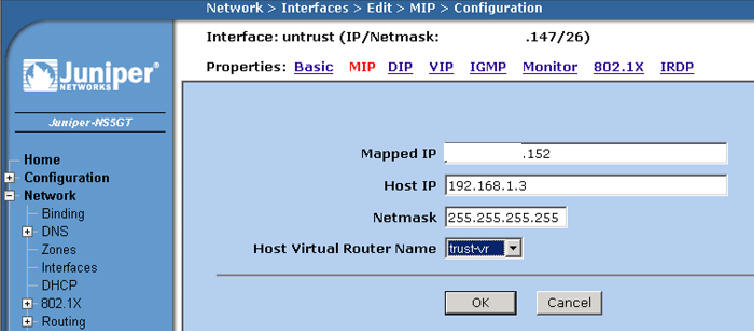

5. Mapped IP is public IP address and Host IP is private IP address. since this is from untrust zone to trust zone, the Host Virtual Router name should be trust-vr.

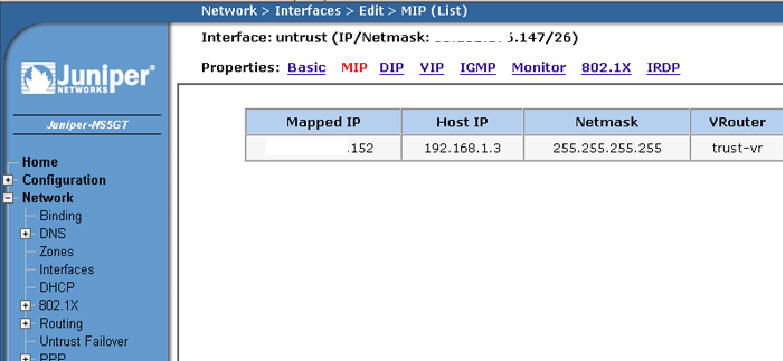

6. Aftersave teh settings, it looks like this:

7. Follow this article to forward ports.
